Description

Neighborhoods is a city-fixer game, spinning off the city-builder genre by focusing on revitalizing pre-existing communities instead of building one from scratch.

As a C++ Gameplay Engineer Intern, I

  • Developed an ECS-driven Crowd AI system simulating pathfinding and daily routines for 1000s of agents.
  • Co-built an interior parallax window system with tech artist, lazy-rendering NPCs into 1000s of windows.
  • Supported our VFX artists by implementing VFX and driving feature requests for our procedurally-generated building system.

Parallax Window System

First Iteration

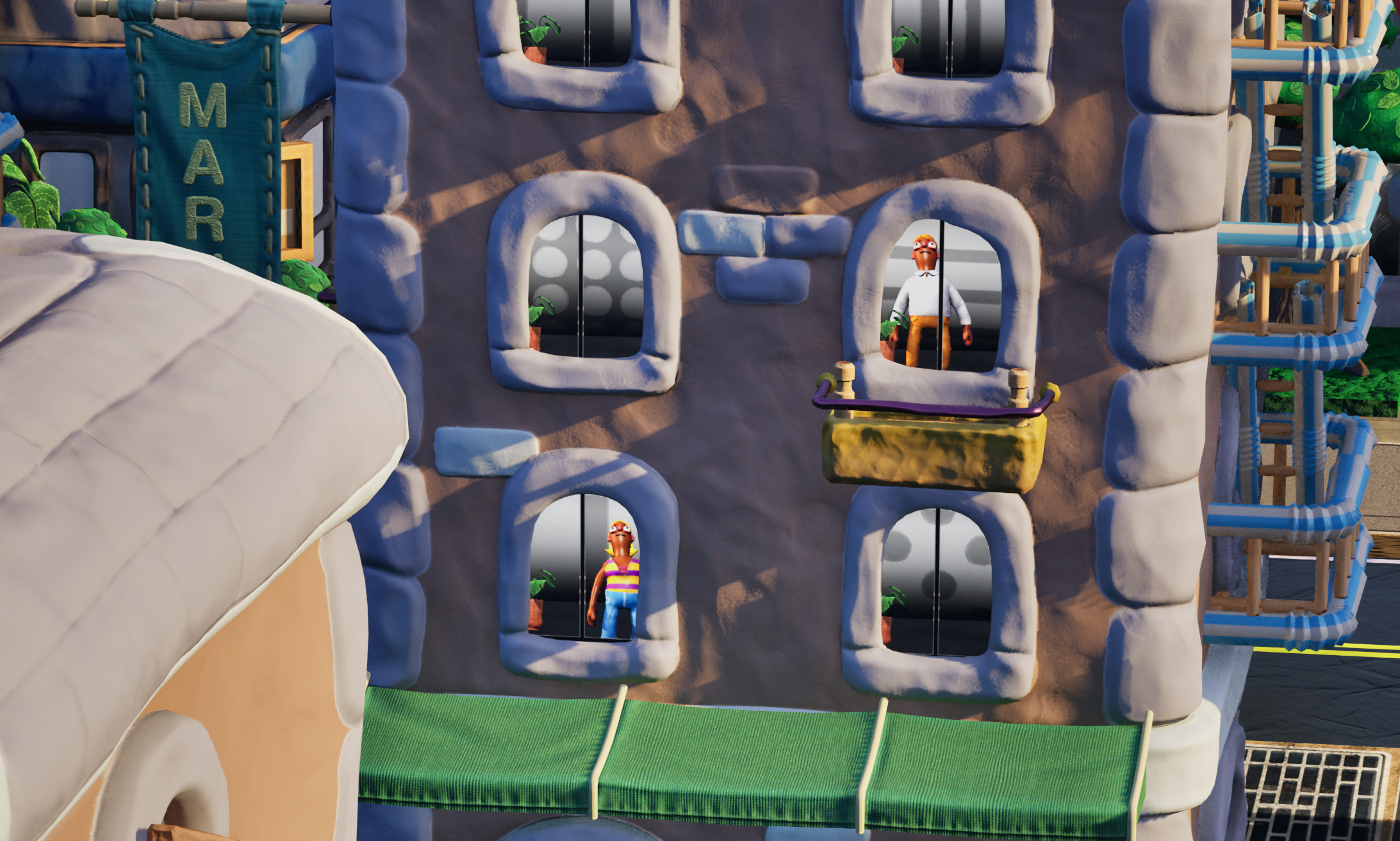

People posing in building windows Neighborhoods has thousands of residents each with a simulated life and an address. I was assigned to render residents when they are in their home.

To accomplish this, I created a window render request subsystem.

  • Each Window Render Request has a priority and soft-pointers to the person, its occupancy unit, and texture.
  • Requests are stored in a priority queue, prioritizing residents that just moved in/out.
  • Rendering windows is rate-limited per tick to prevent sudden frame drops.

How rendering works:

  • When rendering a request, a transient "photo studio" is created. An actor is spawned, along with a camera and key light. The camera "takes a photo" of the person and saves it as a texture.
  • Once a random window in the occupancy unit is chosen, the texture gets assigned in the window's dynamic material instance.

Second Iteration

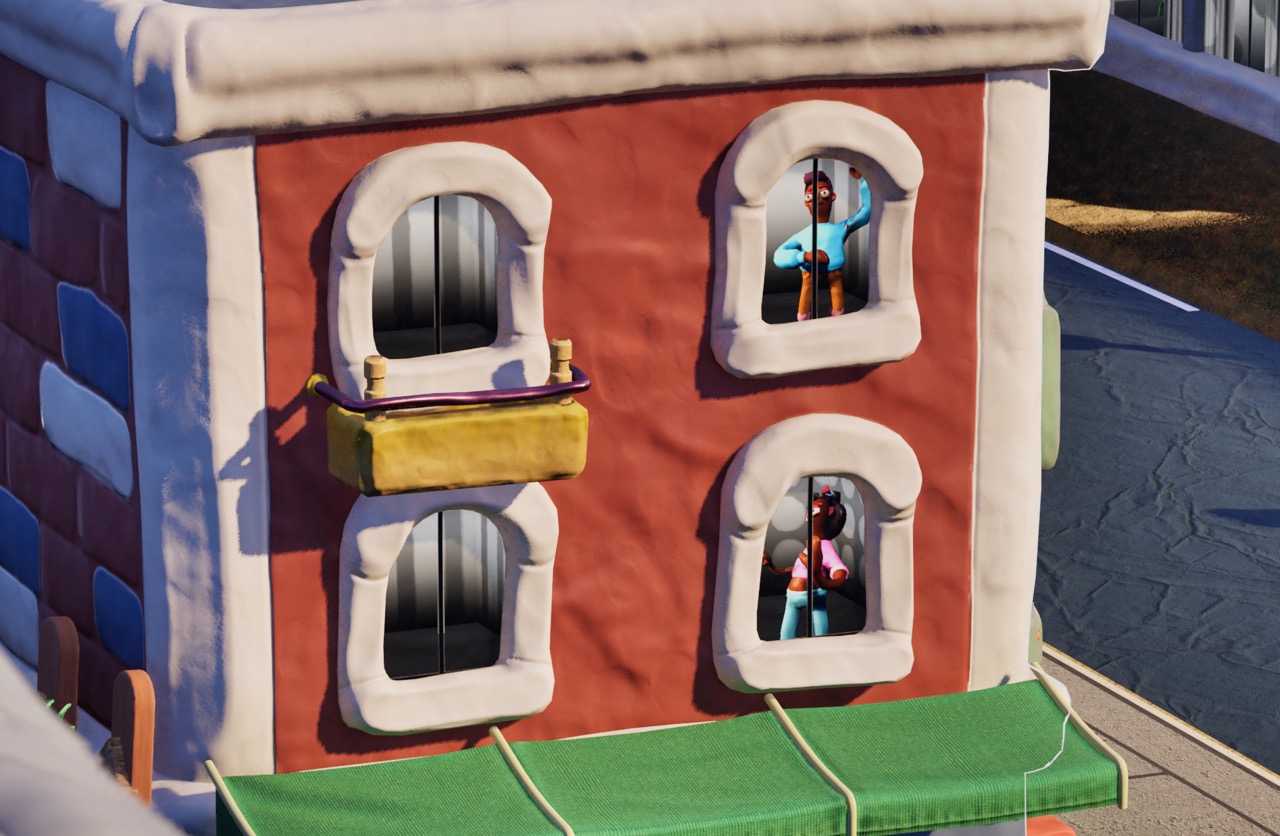

Now all the people are correctly rendered, but you might have noticed that they all strike the same boring pose. Believe it or not, but the residents in Neighborhoods have feelings too. My next task was to randomize their poses and have it reflect their Satisfaction Level. People with varying poses in building windows

Before I could assign poses, I need a set of animations to select from.

  • I created an Animation Data Table to categorize all the animations in our project.
  • Used AI to label all the animations into a CSV.
  • Added to our BP Function Library to make the table globally accessible.

Now when rendering a window, the window manager selects an animation based on the resident's satisfaction, sets the pose to the halfway point of the animation, and then proceeds to take a picture, all in a single tick.

Third Iteration

Next steps are to animate the residents within each window. This will require me to render animations into sprite sheets. I have a few concerns with gpu memory limitations.

ECS-driven Crowd AI system

I'm currently developing the pedestrian system, which is handled with Unreal's Mass Entity System. I'm currently tasked with navigating each pedestrian from the home to work, whether that be with by car, bus or on foot.

I will update this section once I make more progress.

Procedurally Generated Buildings

I was tasked with creating procedural scaffolding when new buildings go under construction.

*The scaffolding adapt to to the height and size of the building.* *Showcase of the scaffolding blueprint.*

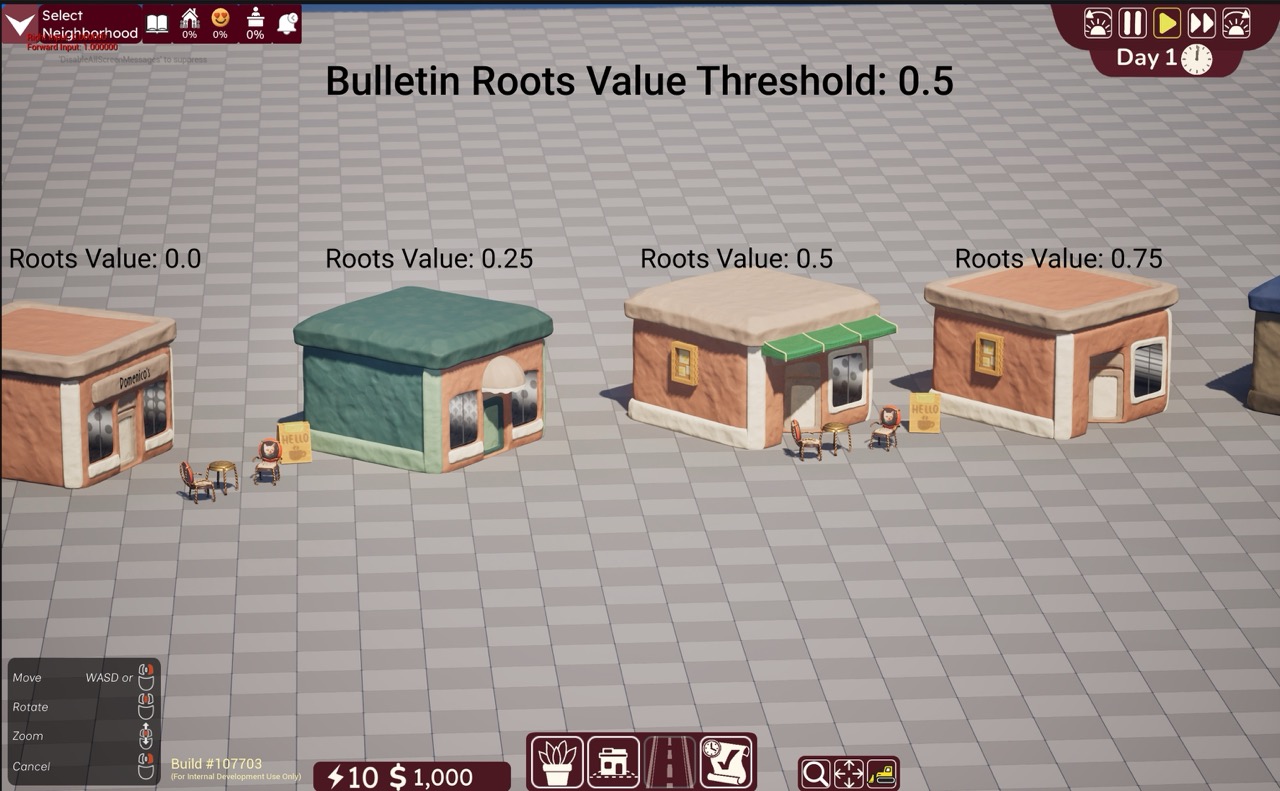

As my onboarding task, I implemented randomized height-based building attachments, such as fire escapes and bulletin boards. Buildings with Bulletin Boards showcasing the cultural involvement value. Bulletin Boards only show up when a building's cultural involvement value exceeds a threshold.

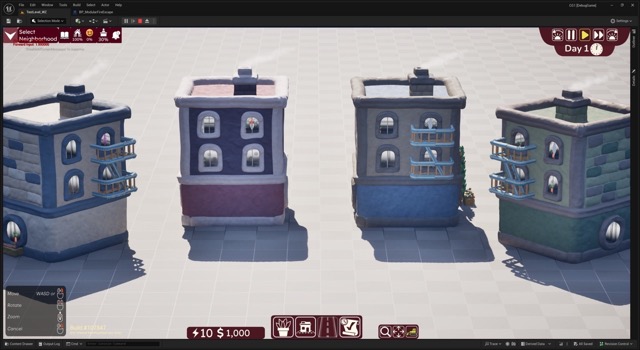

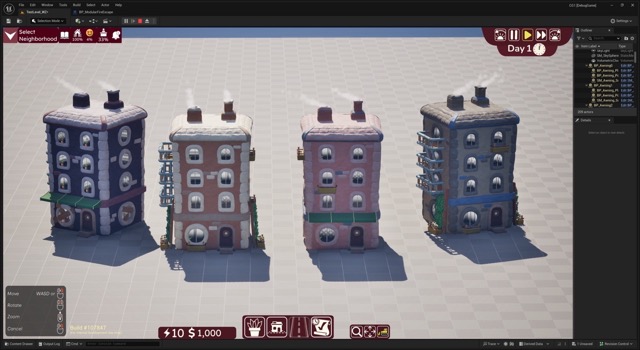

3 story buildings with fire escapes. 4 story buildings with fire escapes.

Fire Escapes are procedurally generated based on building height.
